Bright Gable House — 136 m² with tall roof
Floor plans & elevations
- Passive house
- Open-plan kitchen
- Guest WC
- Utility room

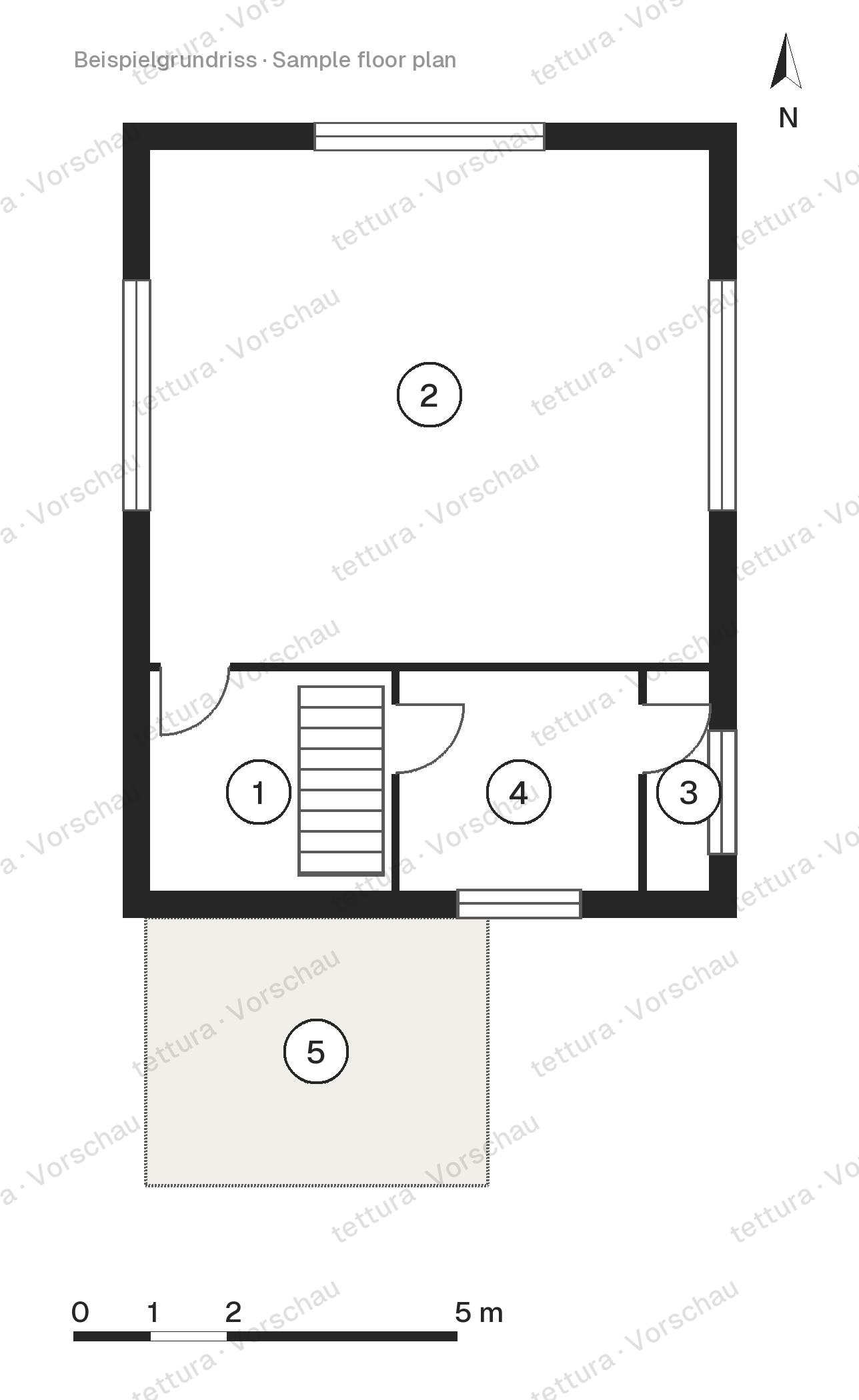

Ground floor
| No. | Room | Area |
|---|---|---|
| 1 | Hall · corridor | 9.53 m² |
| 2 | Living · dining · kitchen | 46.55 m² |
| 3 | Guest WC | 3.27 m² |
| 4 | Utility room | 8.65 m² |
| 5 | Terrace | 15.62 m² |
| Living area | 68 m² | |
Outdoor areas are not included in the living area.

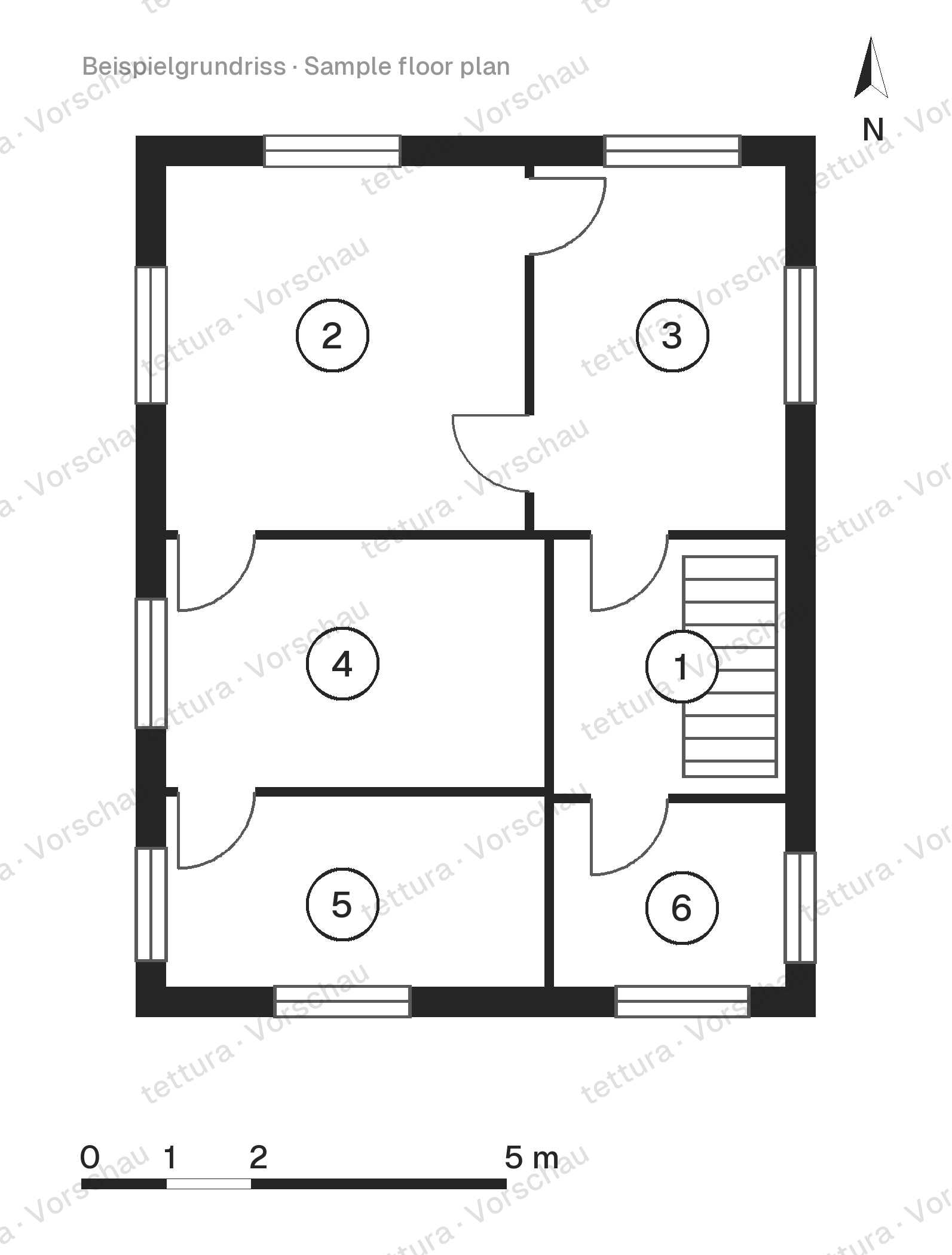

First floor
| No. | Room | Area |
|---|---|---|
| 1 | Hall · corridor | 7.99 m² |
| 2 | Bedroom | 17.81 m² |
| 3 | Children’s room 1 | 12.96 m² |
| 4 | Children’s room 2 | 12.07 m² |
| 5 | Bathroom | 10.55 m² |
| 6 | Shower room | 6.62 m² |
| Living area | 68 m² | |
Watermarked preview. You receive the dimensioned plans with your purchase.
What’s in the plan set
Planning stage: Construction drawings – Construction-ready drawings with details for the trades.
Architecture
- Floor plans of all storeys Included
- Elevations Included
- Sections Included
- Site plan template Site-specific: done locally As a basis
- Detail drawings Included
- Window and door schedule Included
Structure
- Preliminary structural design Site-specific: done locally As a basis
- Structural layout, formwork and reinforcement drawings Site-specific: done locally As a basis
Building physics and energy
- Energy concept Included
- Thermal and energy compliance Site-specific: done locally Available as add-on
Building services
- Electrical plan (sockets, switches, lighting points, distribution board) Included
- Network and communications (LAN, fibre, TV, doorbell) Not included
- Heating (heat load, emitters, underfloor heating) Site-specific: done locally As a basis
- Ventilation strategy and system Not included
- Plumbing (water supply, fixtures, connections) As a basis
- Drainage (wastewater, rainwater) Site-specific: done locally As a basis
- Solar PV and EV charger Available as add-on
- Smart home and building automation Available as add-on
Interior fit-out
- Furniture layout Included
- Kitchen design Included
- Room data sheets (flooring, finishes) Not included
Outdoor areas
- Landscaping (driveway, terraces, grading) Not included
Costs and tendering
- Building specification Included
- Cost estimate Available as add-on
- Quantities and materials list Included
- Specification for tendering Included
As a basis: a concept or template that a specialist works out for your house. Available as add-on: can be commissioned from the architect for an extra fee. Site-specific: depends on your plot (snow and wind loads, climate, ground, utility connections) and is prepared for your house locally.
Architect services
We go through the plan together: your plot, budget, change requests and the steps up to the building application.
Half a day with all households: unit layouts, cost split, fit-out and schedule, with written minutes.
We adapt position, levels, access and setbacks to your site plan and zoning plan; you receive revised drawings.
Bookable directly with your plan purchase.
Technical data
| Living area | 136 m² |
|---|---|
| Exterior dimensions (W × D) | 8 × 10.37 m |
| Ridge height | 9.76 m |
| Roof | Gable · 40° |
| Storeys | 2 |
| Rooms | 4 |
| Bathrooms | 2 |
| Construction | Wood frame |
| Energy standard | Passive house (planned standard, verified on site) |
| Plot from | 450 m² |
| Plot width from | 14 m |
| Basement | no |
| Garage | no |
