Villa Terrazza — 264 m² with infinity pool
Floor plans & elevations
- Minergie
- Open-plan kitchen
- Guest WC
- Utility room
- Study
- Walk-in wardrobe
- Pantry

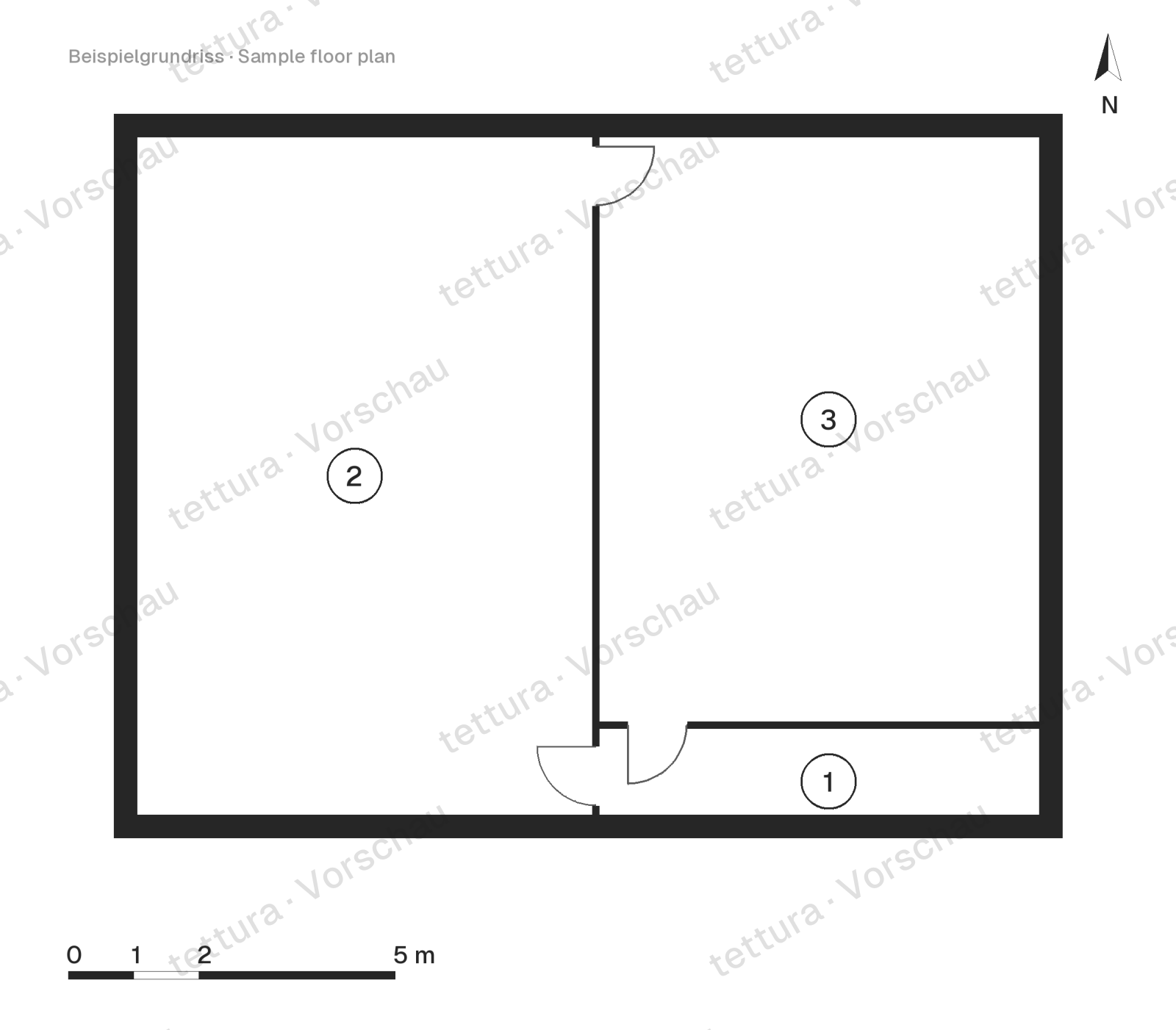

Basement
| No. | Room | Area |
|---|---|---|
| 1 | Plant room | 8.65 m² |
| 2 | Cellar 1 | 57.24 m² |
| 3 | Cellar 2 | 46.83 m² |
| Usable area | 112.72 m² | |

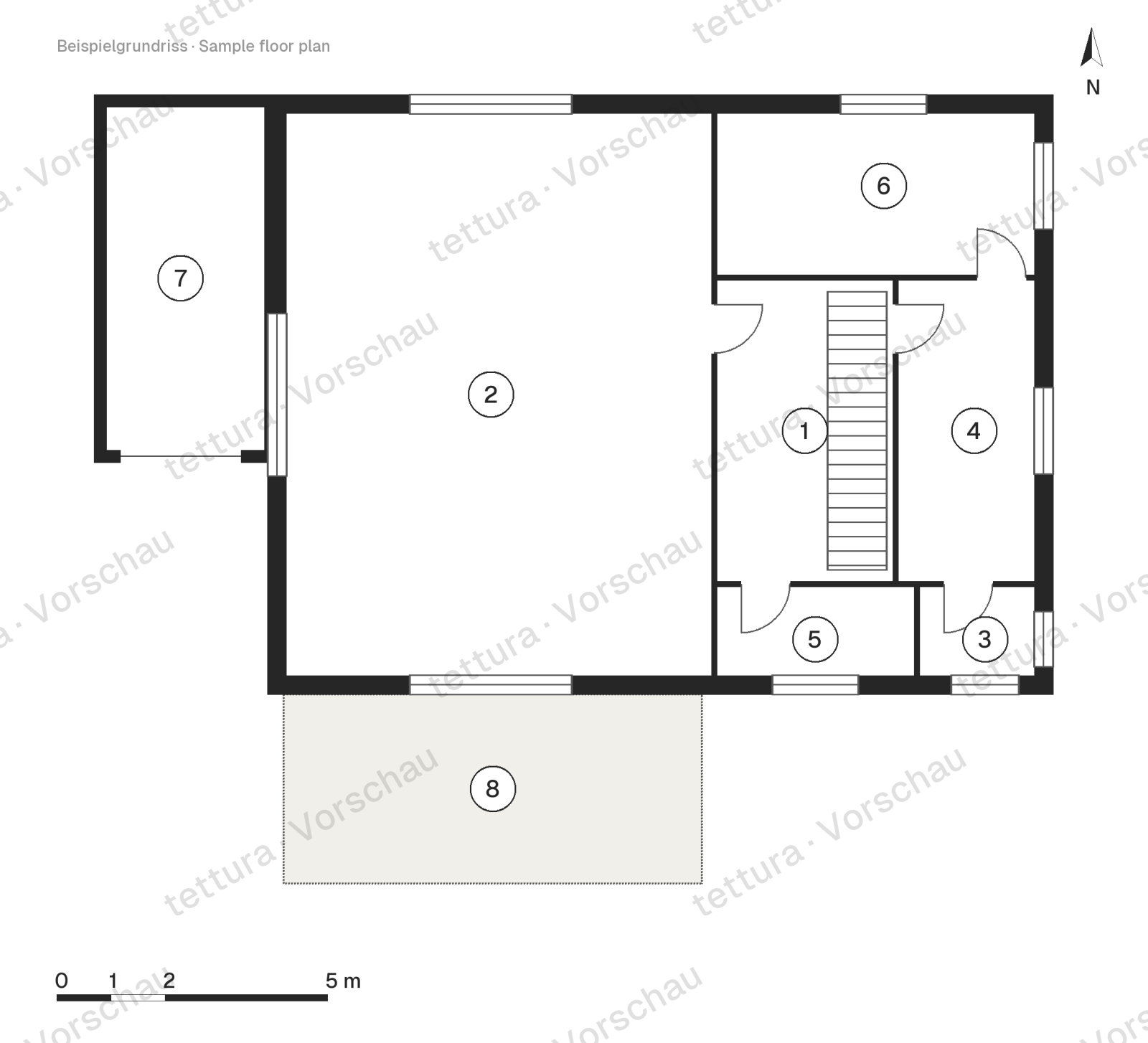

Ground floor
| No. | Room | Area |
|---|---|---|
| 1 | Hall · corridor | 15.58 m² |
| 2 | Living · dining · kitchen | 75.03 m² |
| 3 | Guest WC | 4.22 m² |
| 4 | Utility room | 13.54 m² |
| 5 | Pantry | 6.27 m² |
| 6 | Study | 17.36 m² |
| 7 | Garage | 21.76 m² |
| 8 | Terrace | 27.04 m² |
| Living area | 132 m² | |
| Usable area | 21.76 m² | |
Outdoor areas are not included in the living area.

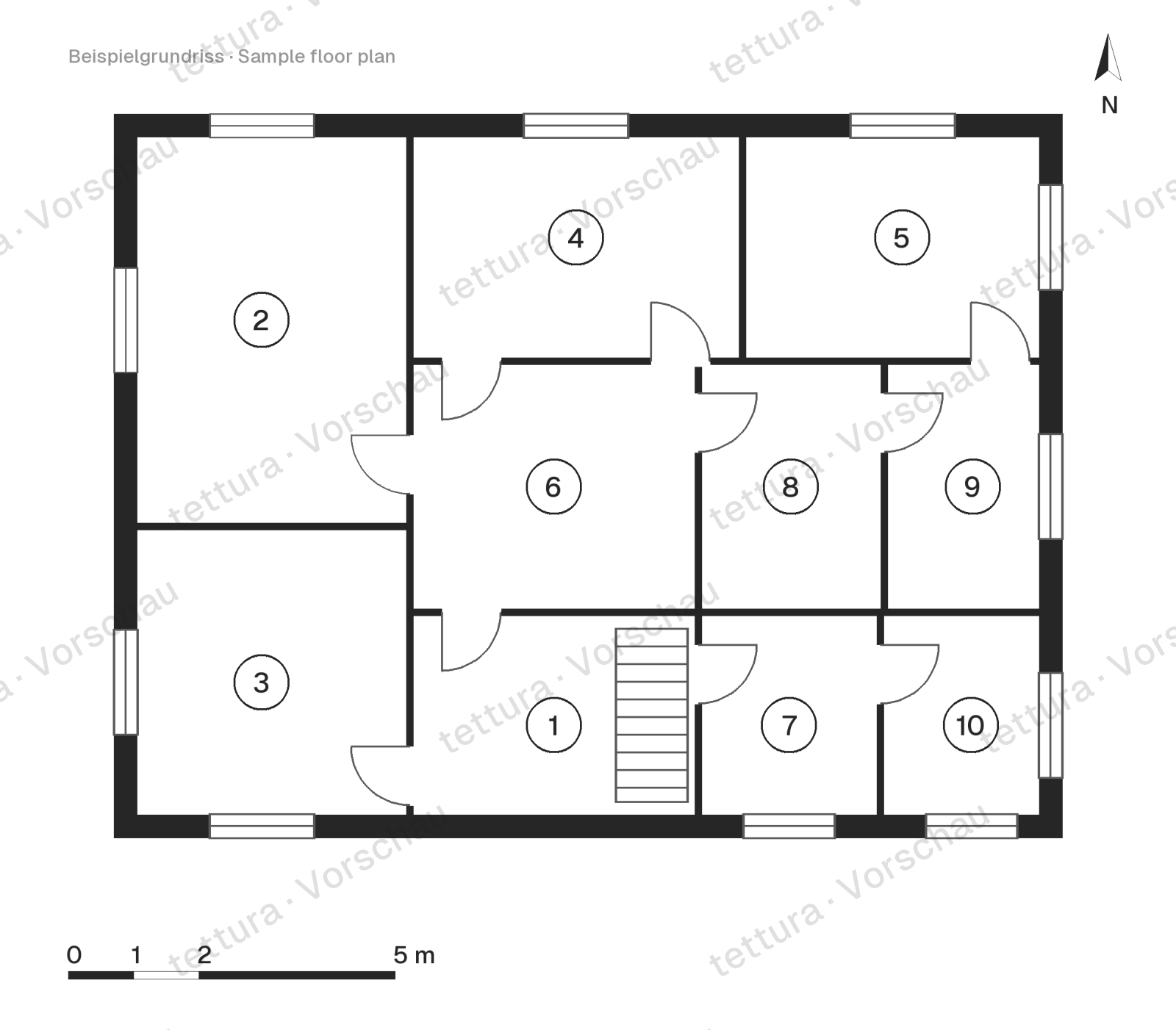

First floor
| No. | Room | Area |
|---|---|---|
| 1 | Hall · corridor | 12.53 m² |
| 2 | Bedroom | 23.44 m² |
| 3 | Children’s room 1 | 17.71 m² |
| 4 | Children’s room 2 | 15.81 m² |
| 5 | Guest room | 15.18 m² |
| 6 | Bathroom | 13.93 m² |
| 7 | Shower room 1 | 7.9 m² |
| 8 | Shower room 2 | 8.99 m² |
| 9 | Shower room 3 | 8.61 m² |
| 10 | Walk-in wardrobe | 7.9 m² |
| Living area | 132 m² | |
Watermarked preview. You receive the dimensioned plans with your purchase.
What’s in the plan set
Planning stage: Planning permission set – Documents to the extent of a permit application, to be adapted to the plot and local law.
Architecture
- Floor plans of all storeys Included
- Elevations Included
- Sections Included
- Site plan template Site-specific: done locally As a basis
- Detail drawings Not included
- Window and door schedule Not included
Structure
- Preliminary structural design Site-specific: done locally As a basis
- Structural layout, formwork and reinforcement drawings Site-specific: done locally Not included
Building physics and energy
- Energy concept Not included
- Thermal and energy compliance Site-specific: done locally As a basis
Building services
- Electrical plan (sockets, switches, lighting points, distribution board) As a basis
- Network and communications (LAN, fibre, TV, doorbell) Not included
- Heating (heat load, emitters, underfloor heating) Site-specific: done locally Not included
- Ventilation strategy and system Available as add-on
- Plumbing (water supply, fixtures, connections) Not included
- Drainage (wastewater, rainwater) Site-specific: done locally Not included
- Solar PV and EV charger Not included
- Smart home and building automation Available as add-on
Interior fit-out
- Furniture layout Included
- Kitchen design Available as add-on
- Room data sheets (flooring, finishes) Not included
Outdoor areas
- Landscaping (driveway, terraces, grading) Available as add-on
Costs and tendering
- Building specification Included
- Cost estimate Available as add-on
- Quantities and materials list Not included
- Specification for tendering Not included
As a basis: a concept or template that a specialist works out for your house. Available as add-on: can be commissioned from the architect for an extra fee. Site-specific: depends on your plot (snow and wind loads, climate, ground, utility connections) and is prepared for your house locally.
Architect services
We go through the plan together: your plot, budget, change requests and the steps up to the building application.
We adapt position, levels, access and setbacks to your site plan and zoning plan; you receive revised drawings.
We hand over CAD files and construction details and answer your local architect’s questions.
Bookable directly with your plan purchase.
Technical data
| Living area | 264 m² |
|---|---|
| Usable area | 134.5 m² |
| Exterior dimensions (W × D) | 14.52 × 11.09 m |
| Ridge height | 6.6 m |
| Roof | Flat |
| Storeys | 2 |
| Rooms | 6 |
| Bathrooms | 4 |
| Construction | Solid construction |
| Energy standard | Minergie (planned standard, verified on site) |
| Plot from | 900 m² |
| Plot width from | 26 m |
| Basement | yes |
| Garage | yes |
| Sloping plot | suitable |
